FLEX CONFIGURATOR - Sale -20%

€1,000.00
€1,000.00 + VAT €1,000.00 VAT incl.
Tax included

Specific References

Qty :

Engine

ENGINES

TRANSMISSIONS

Safety

SAFETY

Infotainment

INFOTAINMENT

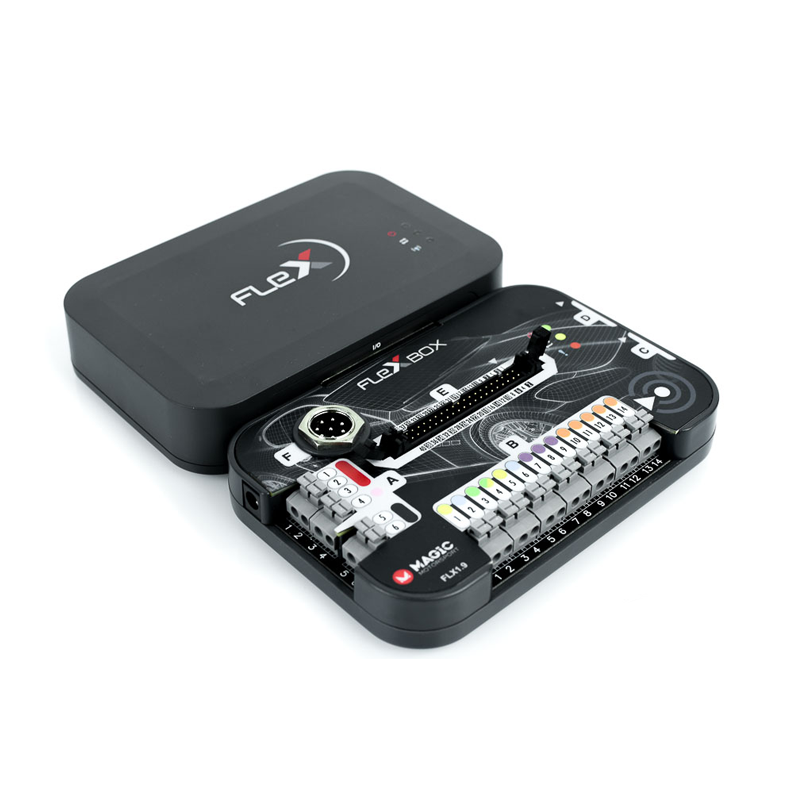

Use your FLEX to easily tune, reprogram, upgrade or modify the software of most control units directly through the OBD socket of the vehicle. An internet connection gives you access to all the potential that the tool offers you.

For advanced and repairing jobs, use the Flexbox module to program your control unit in BDM, Bootloader, JTAG and AUD modes. The device detects eventual connection or communication errors thanks to the concept of its state-of-the -art design.

The Tech Support linked to FLEX provides you with global assistance by remote connection, chat and Ticket system. Discover the infinite possibilities offered by FLEX through the knowledgebase and services provided by MAGICMOTORSPORT.

STAY CONNECTED

Connect your vehicle to our most advanced technology through the variety of modes offered to you. With Flex you can manage engines, transmissions, safety features and infotainment units present in your vehicle in the most efficient way possible.

MAGPro2 FLEX OBD

OBD

Enabled access to most common OBD standards, including:

  • ISO 15765:2 x CAN
  • ISO 99141-2 & ISO 14230: 2 x K-LINE, 1xL-LINE
  • Ethernet
  • SAE J1850 PWM, VPW
  • SAE J1708
MAGPro2 FLEX bench

BENCH

Get access on the BENCH, without having to open the control unit.

Available for:

  • Engine control units
  • Transmission control units
MAGPro2 FLEX BOOT

BOOT

In BOOT mode you will have support for all the available modes:

  • BDM MPC5xx
  • Bootloader C167
  • Bootloader ST10F2xx
  • Bootloader TC17xx
  • Bootloader Nexus MPC/SPC 5xxx
  • JTAG Renesas SH705x
  • JTAG Renesas SH72xxx
  • AUD NEC 76F00xx
VEHICLE AND SERICES LIST

Check out the available software packages, supported services and vehicles.

Package Content

Package contents

# SKU code Quantity Description
1 FLK35 1 Cabling kit: FLX3.5 color coded wiring harness
2 FLK42 1 Adapter kit: 6 pcs set of pin adapters to FLX4.2
3 FLX1.1 1 FLEX Base Module
4 FLX1.9 1 FlexBox Module for FLEX
5 FLX2.10 1 Connection cable OBD: FLEX to CAN/Kline RED
6 FLX2.11 1 Connection cable OBD: FLEX to ENet GREEN
7 FLX3.9 1 Connection cable: USB 2.0 AM-BM BLK 1.8m
8 FLX4.9 1 Power Supply adapter 110-240V 14V 5A
9 FLX3.3 1 Connection cable: FlexBox port C to NEC 7F00 XX
10 FLX3.4 1 Connection cable: FlexBox port D to BDM MPC5xx
11 FLX4.1 1 FlexBox port E 40 pins adapter for FLX3.5
12 FLX9.1 1 Flex & FlexBox diagnostic adapter
13 FLX8.10 1 FLEX Branded Box

Technical Details

Technical Details

Led PC Port
Power
Data
Error		 USB 2.0
Power Communication Port
12V 5A/24V 2.5A ISO 15765:2 x CAN
ISO 99141-2 & ISO 14230: 2 x K-LINE, 1xL-LINE
Ethernet
SAE J1850 PWM, VPW
SAE J1708
Protections Universal Port
ESD 1kV
Over power
Over voltage
Over temperature
Power polarization
USB galvanic separation		 Universal 15 In/Out ports
Voltage standard: internal 3.3V, internal 5V, external 1.8 - 5.5V
JTAG, BDM, AUD, UART
