DynoPRO

€3,178.80
€3,360.00
€2,649.00 VAT excl. €3,178.80 VAT incl. €2,800.00 VAT excl.
Tax included

Specific References

Roadside dynamometer for Professionals

DynoPro is a road dynamometer used to measure power, torque, acceleration
And other parameters of motor vehicles. Measurements can be made on vehicles with any type of drive. The dynamometer is designed for measurements in broadly defined motorsport by professionals.

Qty :

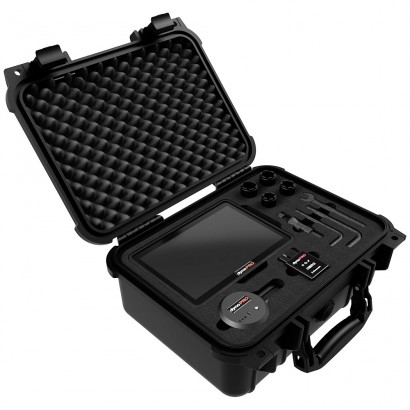

Description of Kit Components

Discover a complete all-in-one solution for versatile use, fast and hassle-free with guaranteed effectiveness. A mobile roadside dynamometer for professional use.




 A - Protective case with foam insert

B - Tablet (with DynoPRO app) in a protective case, charger
C -
Dyno probe - attached to the wheel of the vehicle
D -
OBD2 probe
E - Set of attachment sockets Dyno probes - 17mm , 19mm, 21mm , 22mm
F - M12 threaded pin for mounting
Dyno probes and M10 screw with spring washer
G - Allen wrench 8mm, 10mm and wrench 14mm

All components were made on CNC machine tools. Assembly elements
Are made of tempered quality steel.

dynoPRO - A Quick and Effective Solution

The device features a compact housing made of aluminum and plastic.

Assembly of the device takes about 2 minutes after which the equipment is ready for measurement.

The measurement requires the weight of the vehicle and the tire size (in format, for example, 205 55 16 or circumference in mm).

The device has a built-in weather station for measuring temperature and atmospheric pressure(-40° + 100°, 300-1100hpa). Besides, the device can read the ambient temperature from the OBD2 connector.

Connectivity with the DYNO and OBD2 probe is via Bluetooth. The Dyno probe has a built-in battery that allows for about 10 hours of operation. The OBD2 probe is powered from the OBD2 connector.

In addition to the standard power measurement, the device allows logging additional engine parameters via the OBD2 connector, such as boost pressure , pressure on the injection rail, exhaust gas temperature, etc., and placing them on the chart in relation to the power or torque graph.

In addition to power measurement, the software allows engine controller diagnostics in the EOBD standard (identification of the engine controller and diagnostic protocol, reading and clearing DTC errors, measuring actual values).

Measurement results are presented in 3 variants. Actual, DIN70020, SAE J1349 and EEC. Repeatability error of measurements with the same procedure and conditions below 1%.

The device has no time or quantity limitations in operation. Free software updates. Technical support. The warranty for the device is 2 years.

Assembly of the device takes just 2 minutes!

Instant assembly and disassembly of the dynamometer, makes it possible to take measurements anywhere and anytime, which will be most appreciated by mobile workshops.
