VCDS® HEX-NET® Professional

Original Ross-Tech® VCDS®, Wireless with the HEX-NET® Diagnostic Adapter

VCDS® is a Windows-based diagnostic software. In combination with the Ross-Tech® HEX-NET®, it opens the door to Workshop 4.0. This wireless (WiFi) diagnostic adapter of the latest generation can easily be integrated into an existing workshop WiFi network, allowing access to the vehicle from any computer on the network. If no WiFi network is available, the HEX-NET® can be configured as a router at the push of a button, allowing any WiFi-capable device to connect (even on the go).

All vehicles from the Volkswagen Group (VW, Audi, Seat, Skoda, etc.), from 1992 up to current models, can be diagnosed via K-Line, dual K-Line, and CAN diagnostic lines.

Thanks to the VCDS-Mobile® app (English only, limited functionality, OS-independent), recording of live data during test drives is also possible — compatible with mobile WiFi-enabled devices that have a web browser, such as iPad, iPhone, Windows Phone, Blackberry, Android smartphones, and more.

The Ross-Tech® HEX-NET® is available in 2 different VIN variants:

• 10 VINs – for enthusiasts, allows diagnostics on up to 10 different vehicles

• Unlimited VINs – for workshops and diagnostic professionals, allows diagnostics on an unlimited number of different vehicles

10 VIN adapters can be upgraded (for a fee) to the unlimited version if needed.

Note: The diagnostic interface can be used up to 10 times before free registration is required!

Features (Selection)

• Over 20,000 error codes available by default

• Auto-Scan function: Read and clear fault codes in all control units (ECUs)

• Coding Assistant: Configure control units easily

• Control unit selection and gateway installation list

• Reading and recording of live data

• Display, record, and save measuring blocks

• Basic settings and adaptation of electrical and electromechanical components

• Safe initialization of replacement parts, such as throttle bodies or MAF sensors

• Actuator testing

• Service reset

• Cross-manufacturer EOBD/OBDII functionality

• Enable retrofitted trailer hitches and other upgrades

• Open electronic parking brake for pad replacement

• Access all control modules using KWP-1281, KWP-2000 protocol (K-Line), KWP6000 (CAN), and/or KWP7000 (UDS)

Product Description

• Durable housing made of high-quality plastic blend, with improved 16-pin OBDII connector (ISO 9141-2) and enhanced USB connector

• New and highly visible status LEDs

• 32-bit processor

• WiFi-capable, enabling wireless, optimized diagnostics

• Alternatively usable via screwable, interchangeable USB cable (2m)

• Multi-user capable (license dongle function)

• 2-year warranty

Compatibility

• All Volkswagen Group vehicles with K-Line or dual diagnostic lines

• Newer Volkswagen Group vehicles with dual diagnostic lines or CAN-Bus

• Older vehicles with 2x2-pin connector using optional 2x2 to 16-pin adapter

• VW LT vans using optional VW LT cable adapter

• VCDS usage on desktop PCs, tablets, laptops, etc.

• VCDS-Mobile® app compatible with all WiFi-enabled mobile devices with web browsers (e.g., iPad, iPhone, Windows Phone, Blackberry, Android smartphones — English only, limited functionality, OS-independent)

System Requirements

• Windows VISTA or newer

• At least 2 GB RAM (single core)

• WiFi capability or USB connection (version 1.1 or higher)

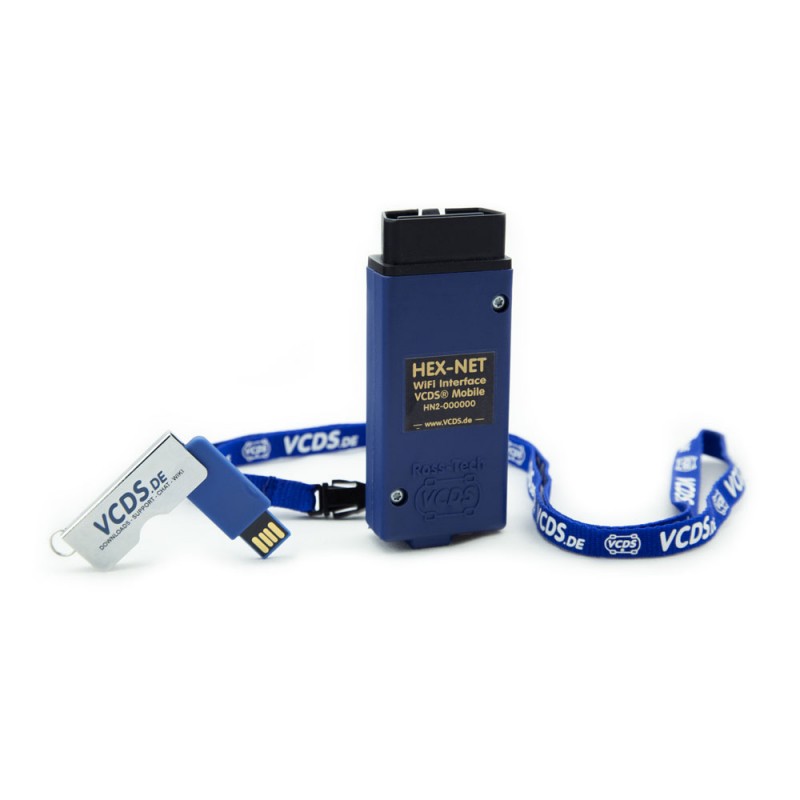

Scope of Delivery

• Ross-Tech® HEX-NET® diagnostic adapter

• USB connection cable (2m)

• Practical lanyard

• 8GB USB stick with current full version of VCDS (German/English), USB drivers, VCDS manual, remote maintenance assistant, and more

• Installation manual

Extensive Free VCDS Support

• Professional telephone support from Auto-Intern:
  Mon–Thu: 09:00–17:00, Fri: 09:00–15:00
  Tel: +49 (0) 234 58 54 58 00 (remote support available)

• Email support by diagnostic professionals from Auto-Intern

• Forum and wiki access

• Downloadable guides on various topics

• VCDS updates via online download (for at least 12 months after purchase)

• VCDS.de Telegram chat support: Connect with other VCDS users and expand the community and knowledge base
