FLEX MDG1 Boot Glitch Adapter

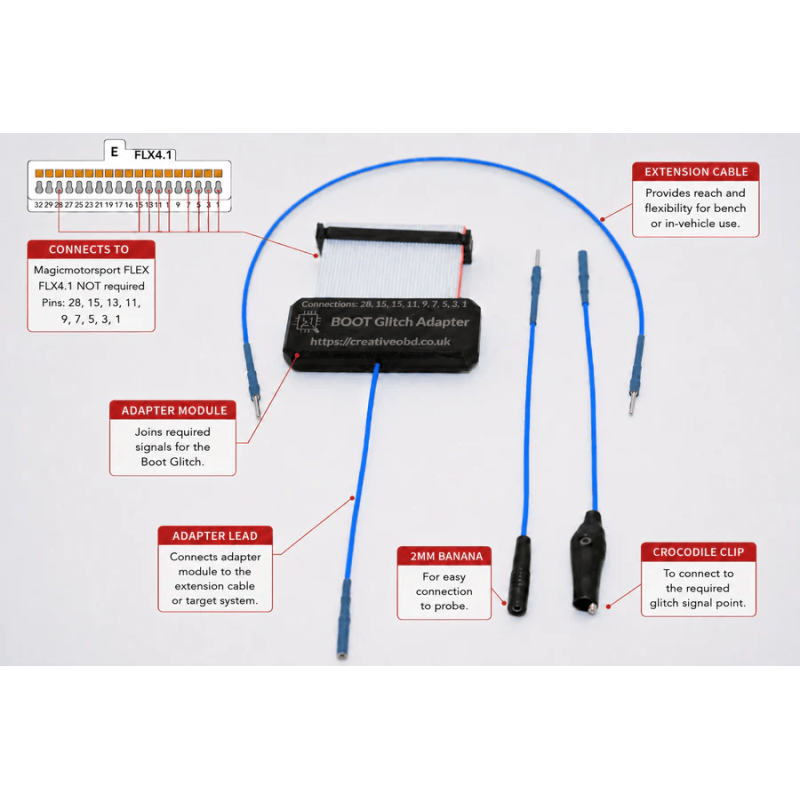

This adapter is designed for the new Magicmotorsport FLEX Bosch MDG1 Boot Glitch solution. It enables connection to the required Port E signals without the need for the FLX4.1 adapter. The adapter links the necessary pins for the Boot Glitch unlock process and offers flexible connection options using the supplied 2 mm banana lead and crocodile clip lead.

It is suitable for Bosch MDG1 ECUs equipped with Aurix TC2xx microprocessors, including supported applications across VAG, BMW, Stellantis, Kia/Hyundai, JLR, Ford, and Iveco platforms.

Key Features:

Designed for the Magicmotorsport FLEX Bosch MDG1 Boot Glitch procedure
No FLX4.1 adapter required
Connects the required Port E pins: 28, 15, 13, 11, 9, 7, 5, 3, 1
2 mm banana connection for easy probe connection, included
Crocodile clip lead for connection to the required glitch signal point, included
Includes extension cable for easier bench or in-vehicle access, using the same connections as FLEX
Useful for Bosch MDG1 No RFT unlock procedures

Important: Use only where supported by Magicmotorsport FLEX software and official protocol instructions.

Supported ECUs:

All Bosch MD1CE101 TC299
Iveco Bosch MD1CS069 TC299
Iveco Bosch MD1CE102 TC299
BMW Bosch MD1CP032 TC299
BMW Bosch MG1CS024 TC298
BMW Bosch MG1CS201 TC298
Ford Bosch MD1CS005 TC298
JLR Bosch MD1CP007 TC298
JLR Bosch MD1CP017 TC298
JLR Bosch MG1CS028 TC298
Kia/Hyundai Bosch MD1CS012 TC298
Stellantis Bosch MD1CS003 TC298
Stellantis Bosch MG1CS042 TC298
VAG Bosch MD1CS004 H80 TC298
VAG Bosch MG1CS002 H80 TC298
VAG Bosch MG1CS031 H80 TC298
VAG Bosch MG1CS163 TC298

Note: MD1CS069 FCA versions and Ford MD1CP006 are currently not supported.

Working Mode: Boot Glitch – Bench
Memory Functions: Read/Write/Checksum Internal Flash, Read/Write Internal EEPROM, Full Backup, Boot Unlock
License: FLS0.5M/S
Connect/Glitch Time: From 10 seconds to 25 minutes, variable
Reading Time: Approximately 2 minutes and 30 seconds
Writing Time: Approximately 2 minutes
